產品名稱: |

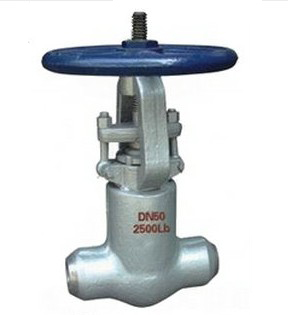

美標高壓鑄鋼閘閥 |
產品型號: |
Z61Y |
產品特點: |
信茂美標高壓鑄鋼閘閥:質量可靠,價格實惠,交貨及時,售后周到.我公司提供全套工程閥門解決方案,閥門售前、售中、售后專業服務! |
|
|
美標高壓鑄鋼閘閥適用標準
鋼制閘閥,API600/API 6D
鋼制閘閥,ISO 10434/ISO 14313
溫度和壓力,ASME B16.34
結構長度,ASME B 16.10
端法蘭, ASME B 16.5
對焊端,ASME B 16.25
測試和實驗,API 598/API 6D
設計說明
高壓密封閥蓋
剛性或彈性閘板,全程導向
可更換閥座
鍛造T型頭閥桿
升降式或非升降式手輪
法蘭或對焊端
適用于高壓力
標準材料規范
No. |
Part Name |
ASTM Material |
Carbon Steel |
1.25Cr-0.5Mo |
2.25Cr-1Mo |
304 Type |
316 Type |
304L Type |
316L Type |
20 Alloy |
1 |
Body |
A216 WCB |
A217WC6 |
A217 WC9 |
A351CF8 |
A351CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
2 |
Yoke |
A216 WCB |
A217WC6 |
A217 WC9 |
A351CF8 |
A351CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
3 |
Wedge |
WCB+HF |
A217 WC6+HF |
A217 WC9+H F |
A351 CF8 |
A351CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
4 |
Stem |
A182
F6a |
A182
F11 |
A182
F22 |
A182
F304 |
A182
F316 |
A182 F304L |
A182 F316L |
20-Alloy |
5 |
Seat Ring |
A105+HF |
A182 F11+HF |
A182 F22+HF |
NA |
NA |
NA |
NA |
NA |
6 |
Bonnet |
A216 WCB |
A217WC6 |
A217 WC9 |
A351CF8 |
A351CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
7 |
Bonnet Gasket |
304+
Graphite |
304+
Graphite |
304+
Graphite |
304+
Graphite |
316+
Graphite |
304L+
Graphite |
316L+
Graphite |
316+
Graphite |
8 |
Adapter Ring |
Soft steel |
A182 F6a |
A182 F6a |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
20-Alloy |
9 |
Retainer |
A182 F6a |
A182 F6a |
A182 F6a |
A182 F304 |
A182 F304 |
A182 F304 |
A182 F304 |
A182 F304 |
10 |
Yoke Cap |
A216 WCB |
A217WC6 |
A217 WC9 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
11 |
Bonnet Bolt |
A193 B7 |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
12 |
Bonnet Nut |
A194 2H |
A194 7 |
A194 7 |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
13 |
Packing |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
14 |
Gland |
A276 410 |
A276 410 |
A276 410 |
A276 304 |
A276 316 |
A276 304L |
A276 316L |
20-Alloy |
15 |
Gland Flange |
A216 WCB |
A216WCB |
A216WCB |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
16 |
Eyebolt |
Carbon steel |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
17 |
Eyebolt Nut |
Carbon steel |
A194 2H |
A194 2H |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
18 |
Eyebolt Pin |
A276 410 |
A276 411 |
A276 412 |
A276 304 |
A276 304 |
A276 304 |
A276 304 |
A276 304 |
19 |
Greas Fitting |
Commercial |
Commercial |
Commercial |
Commercial |
Commercial |
Commercial |
Commercial |
Commercial |
20 |
Stem Nut |
Bronze |
Bronze "1 |
Bronze "1 |
Bronze |
Bronze |
Bronze |
Bronze |
Bronze |
21 |
Jam Nut |
Carbon steel |
Carbon steel |
Carbon steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
22 |
Hand Wheel |
Malleable iron |
Malleable iron |
Malleable iron |
Malleable iron |
Malleable iron |
Malleable iron |
Malleable iron |
Malleable iron |
23 |
Wheel Nut |
Carbon steel |
Carbon steel |
Carbon steel |
Carbon steel+Zn |
Carbon steel+Zn |
Carbon steel+Zn |
Carbon steel+Zn |
Carbon steel+Zn |
*1 |
Ductile Ni-Resist iron Optional
|
NA |
Integral with vessell
|
主要外觀尺寸和重量 Class 600
Valve Size |
in |
2 |
2.5 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
A1 |
in |
7.0 |
8.5 |
10.0 |
12.0 |
18.0 |
23.0 |
28.0 |
32.0 |
35.0 |
39.0 |
43.0 |
47.0 |
55.0 |
mm |
178 |
216 |
254 |
305 |
457 |
584 |
711 |
813 |
889 |
991 |
1092 |
1194 |
1397 |
A2 |
in |
11.5 |
13.0 |
14.0 |
17.0 |
22 0 |
26.0 |
31.0 |
33.0 |
35.0 |
39.0 |
43.0 |
47.0 |
55.0 |
mm |
292 |
330 |
356 |
432 |
556 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
1397 |
A3 |
in |
11.62 |
13.12 |
14.12 |
17.12 |
22 12 |
26.12 |
31.12 |
33.12 |
35.12 |
39.12 |
43.12 |
47.25 |
55.38 |
mm |
295 |
333 |
359 |
435 |
562 |
664 |
791 |
841 |
892 |
994 |
1095 |
1200 |
1406 |
H |
in |
23.2 |
24.8 |
26.3 |
36.0 |
42.5 |
49.9 |
59.5 |
70.5 |
73.1 |
85.1 |
88.6 |
97.2 |
118.1 |
mm |
590 |
629 |
667 |
914 |
1080 |
1267 |
1511 |
1791 |
1857 |
2162 |
2251 |
2470 |
3000 |
W |
in |
7.9 |
9.8 |
9.8 |
11.8 |
19.7 |
22.0 |
27.2 |
35.8 |
24.0 |
24.0 |
24.0 |
24.0 |
30.0 |
mm |
200 |
250 |
250 |
300 |
500 |
560 |
690 |
610 |
610 |
610 |
610 |
610 |
760 |
Weight |
RF |
ib |
154.4 |
209.5 |
220.5 |
326.3 |
540.2 |
705.6 |
948.2 |
1135.6 |
1477.4 |
1995.5 |
2535.8 |
3186.2 |
4586.4 |
kg |
70 |
195 |
100 |
148 |
245 |
320 |
430 |
515 |
670 |
905 |
1150 |
1445 |
2080 |
BW |
ib |
136.7 |
176.4 |
165.2 |
253.6 |
377.1 |
474.1 |
590.9 |
701.2 |
959.2 |
1256.9 |
1587.6 |
1962.5 |
2833.4 |
kg |
62 |
80 |
84 |
115 |
171 |
215 |
268 |
318 |
435 |
570 |
720 |
890 |
1285 |
主要外觀尺寸和重量 Class 900
Valve Size |
in |
2 |
2.5 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
A1 |
in |
8.5 |
10.0 |
12.0 |
14.0 |
20.0 |
26.0 |
31.0 |
36.0 |
39.0 |
43.0 |
46.5 |
50.0 |
59.5 |
mm |
216 |
254 |
305 |
356 |
508 |
660 |
787 |
914 |
991 |
1092 |
1181 |
1283 |
1511 |
A2 |
in |
14.5 |
16.5 |
15.0 |
18.0 |
24.0 |
29.0 |
33.0 |
38.0 |
40.5 |
44.5 |
48.0 |
52.0 |
61.0 |
mm |
368 |
419 |
381 |
457 |
610 |
737 |
838 |
965 |
1029 |
1130 |
1219 |
1321 |
1549 |
A3 |
in |
14.62 |
16.62 |
15.12 |
18.12 |
24.12 |
29.12 |
33.12 |
38.12 |
40.88 |
44.88 |
48.5 |
52.5 |
61.75 |
mm |
371 |
422 |
384 |
460 |
612 |
740 |
841 |
968 |
1038 |
1140 |
1232 |
1333 |
1568 |
H |
in |
23.4 |
29.6 |
29.8 |
34.0 |
39.9 |
50.2 |
60.7 |
70.1 |
79.8 |
89.0 |
97.2 |
108.3 |
1276 |
mm |
594 |
753 |
756 |
864 |
1013 |
1276 |
1543 |
1781 |
2026 |
2261 |
2470 |
2750 |
3242 |
W |
in |
11.8 |
17.7 |
17.7 |
19.7 |
22 0 |
18.1 |
24.0 |
24.0 |
24.0 |
24.0 |
29 9 |
29.9 |
24.0 |
mm |
300 |
450 |
450 |
500 |
560 |
460 |
610 |
610 |
610 |
610 |
760 |
760 |
610 |
Weight |
RF |
ib |
132.3 |
207.3 |
224.9 |
330.8 |
617.4 |
1455.3 |
2116.8 |
2976.8 |
3748.5 |
5292 |
7320.6 |
9702.0 |
14927.9 |
kg |
60 |
94 |
102 |
150 |
280 |
660 |
960 |
1350 |
1700 |
2400 |
3320 |
4400 |
6770 |
BW |
ib |
88.2 |
141.1 |
176.4 |
220.5 |
407.9 |
1091.5 |
1620.7 |
2315.3 |
3087.0 |
4299.8 |
6019.7 |
8125.4 |
11973.2 |
kg |
40 |
64 |
80 |
100 |
185 |
495 |
735 |
1050 |
1400 |
1950 |
2730 |
3685 |
5430 |
主要外觀尺寸和重量Class 1500
Valve Size |
in |
2 |
2.5 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
A1 |
in |
8.5 |
10.0 |
12.0 |
16.0 |
22 0 |
28.0 |
34.0 |
39.0 |
42.0 |
47.0 |
53.0 |
58.0 |
64.0 |
mm |
216 |
254 |
305 |
406 |
559 |
711 |
864 |
991 |
1067 |
1194 |
1346 |
1473 |
1626 |
A2 |
in |
14.5 |
16.5 |
18.5 |
21.5 |
27.75 |
32.75 |
39.0 |
44.5 |
49.5 |
54.5 |
60.5 |
65.5 |
76.5 |
mm |
368 |
419 |
470 |
546 |
705 |
832 |
991 |
1130 |
1257 |
1384 |
1536 |
1664 |
1943 |
A3 |
in |
14.62 |
16.62 |
18.62 |
21.62 |
28.0 |
33.13 |
39.38 |
45.12 |
50.25 |
55.38 |
61.38 |
66.38 |
77.62 |
mm |
371 |
422 |
473 |
549 |
711 |
841 |
1000 |
1146 |
1276 |
1406 |
1559 |
1686 |
1972 |
H |
in |
23.4 |
29.6 |
29.6 |
34.0 |
48.0 |
51.6 |
64.8 |
77.8 |
87.2 |
91.8 |
111.1 |
122.1 |
148.3 |
mm |
594 |
753 |
753 |
864 |
1219 |
1311 |
1645 |
1975 |
2216 |
2331 |
2823 |
3102 |
3766 |
W |
in |
11.8 |
17.7 |
17.7 |
19.7 |
24.0 |
24.0 |
24.0 |
24.0 |
29.9 |
29.9 |
29 9 |
24.0 |
24.0 |
mm |
300 |
450 |
450 |
500 |
610 |
610 |
610 |
610 |
760 |
760 |
760 |
610 |
610 |
Weight |
RF |
ib |
132.3 |
207.3 |
264.6 |
458.6 |
1058.4 |
2006.6 |
3109.1 |
4586.4 |
5755.1 |
7938 |
13141.8 |
16250.9 |
23395.1 |
kg |
60 |
94 |
120 |
208 |
480 |
910 |
1410 |
2080 |
2610 |
3600 |
5960 |
7370 |
10610 |
BW |
ib |
88.2 |
141.1 |
176.4 |
326.3 |
749.7 |
1499.4 |
2249.1 |
3197.3 |
3969 |
6063.8 |
10209.2 |
12612.6 |
18169.2 |
kg |
40 |
64 |
80 |
148 |
340 |
680 |
1020 |
1450 |
1800 |
2750 |
4630 |
5720 |
8240 |
主要外觀尺寸和重量 Class 2500
Valve Size |
in |
2 |
2.5 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
A1 |
in |
11.0 |
13.0 |
14.5 |
18.0 |
24.0 |
30.0 |
36.0 |
41.0 |
44.0 |
49.0 |
55.0 |
mm |
279 |
330 |
368 |
457 |
610 |
762 |
914 |
1041 |
1118 |
1245 |
1397 |
A2 |
in |
17.75 |
20.0 |
22 75 |
26.5 |
36.0 |
40.25 |
50.0 |
56.0 |
- |
- |
- |
mm |
451 |
508 |
578 |
673 |
914 |
1022 |
1270 |
1422 |
- |
- |
- |
A3 |
in |
17.87 |
20.25 |
23.0 |
26.88 |
36.5 |
40.87 |
50.88 |
56.88 |
- |
- |
- |
mm |
454 |
514 |
584 |
683 |
927 |
1038 |
1292 |
1445 |
- |
- |
- |
H |
in |
23.4 |
29.6 |
29.6 |
34.3 |
47.3 |
57.1 |
63.4 |
82.5 |
90.2 |
97.2 |
116.1 |
mm |
594 |
753 |
753 |
870 |
1201 |
1451 |
1610 |
2096 |
2291 |
2470 |
2950 |
W |
in |
14.0 |
17.7 |
19.7 |
23.6 |
24.0 |
24.0 |
24.0 |
29.9 |
29 9 |
24.0 |
24.0 |
mm |
355 |
450 |
500 |
600 |
610 |
610 |
610 |
760 |
760 |
610 |
610 |
Weight |
RF |
ib |
172.1 |
273.4 |
334.1 |
702.7 |
1640.3 |
2673 |
4807.4 |
6925.5 |
- |
- |
- |
kg |
85 |
135 |
165 |
347 |
810 |
1320 |
2374 |
3420 |
- |
- |
- |
BW |
ib |
101.3 |
182.3 |
192.4 |
384.8 |
1053 |
1498.5 |
3240 |
6075 |
6885 |
8505 |
10125 |
kg |
50 |
90 |
95 |
190 |
520 |
740 |
1600 |
300 |
3400 |
4200 |
5000 |
|
如果你對美標高壓鑄鋼閘閥感興趣,想了解更詳細的產品信息,填寫下表直接與廠家聯系: |
|
|
|
|
